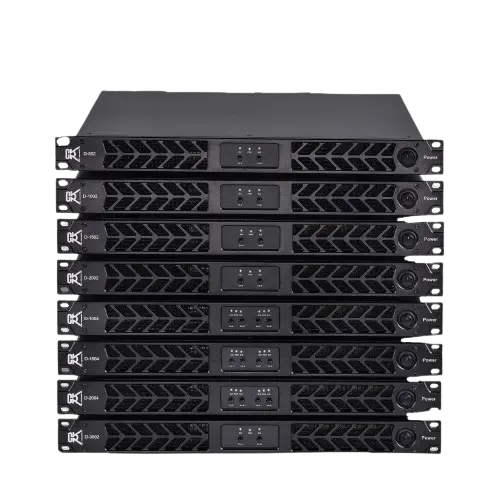

CVR D-4302
D series digital power amplifiers are our company's new generation flagship products. This series of power amplifiers adopt the multi-loop control technology independently developed by our company and have excellent technical indicators; the power conversion technology specially designed for low impedance and high current enables the power amplifier to have more than 95% efficiency and excellent stability; switching power supply Using active PFC and soft switching technology, and optimized design for the audio power amplifier, it can adapt to the harsh grid environment and provide continuous surging power for the power amplifier.
FICHA TECNICA CVR D-4302
Product Description
Model | D-4302/DSP 4302 |
Type | Power Amplifier |
8 ohm/Stereo | 2*4300W |
4 ohm/Stereo | 2*7300W |
2 ohm/Stereo | 2*12400W |
16 ohm/Bridge | 1*8600 W |
8 ohm/Bridge | 14600W |
4 ohm/Bridge | 24800W |
Output RMS Voltage | 185.5v |
Slew Rate | 100V/us |
Sensitivity (selectable) | 41dB 38dB,35dB, 32dB |
THD+N | 0.01% |
IMD-SMPTE | 0.01% |
DIME30 | 0.01% |
Cross-talk | >/= 90dB |
Frequency response | +/-0.2dB |
Input impedance | 20k Ohm(balance), 10K ohm (unbalance) |
Damp Factor | >/=5000 |
SNR | >/=115dB |
Main Power | 120-260CVAC, 50-60Hz |
Protection | under voltage,DC, temperature,over load limiter, short protection |
Size | 483*44*465mm |
Net Weight | 12kg |
